Frankenstein
Frankenstein

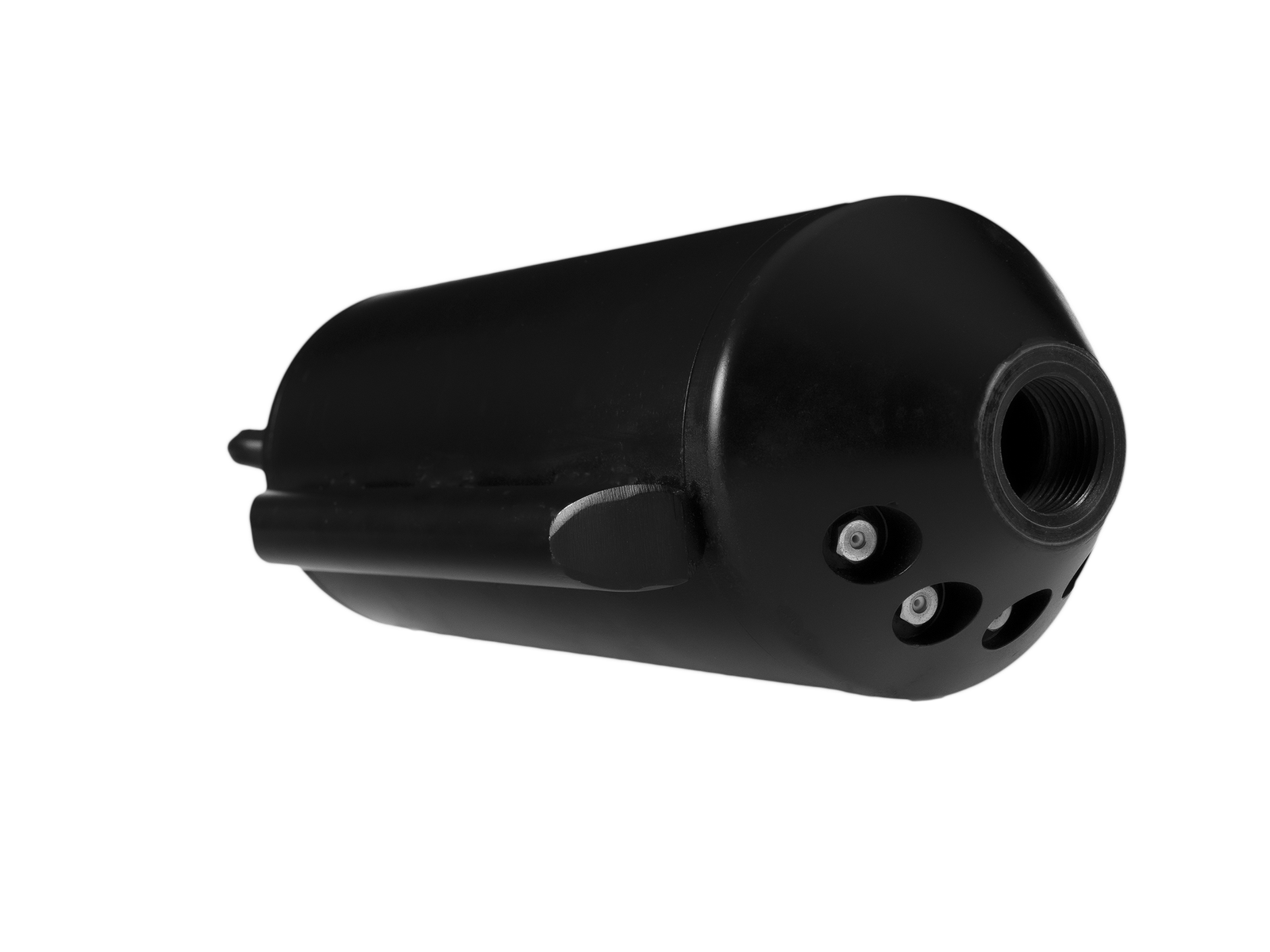

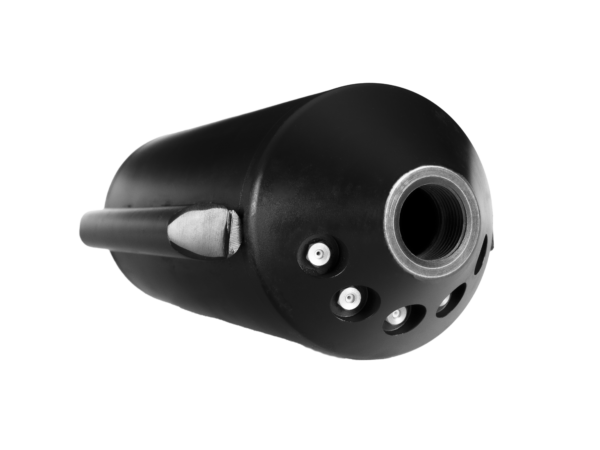

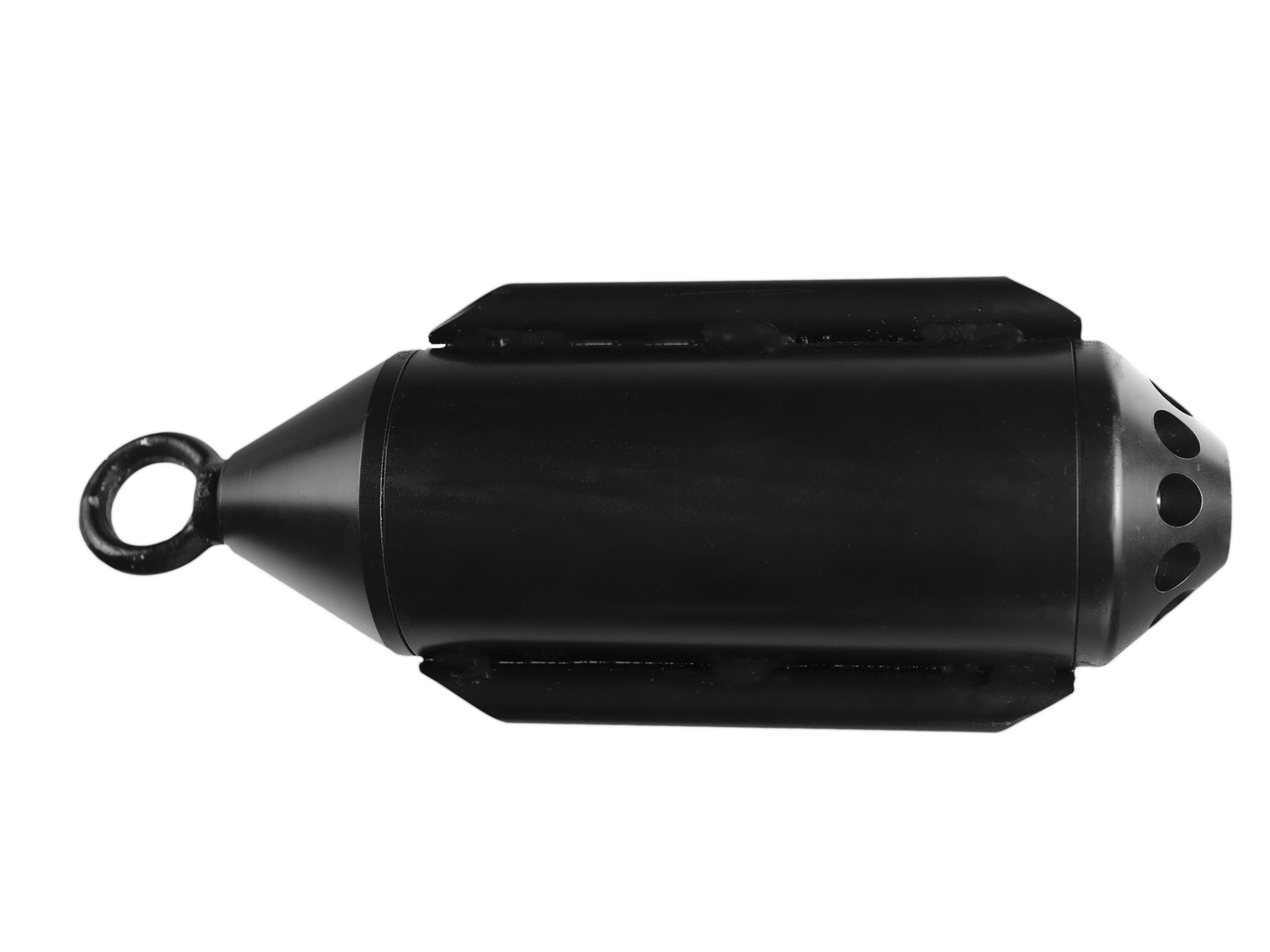

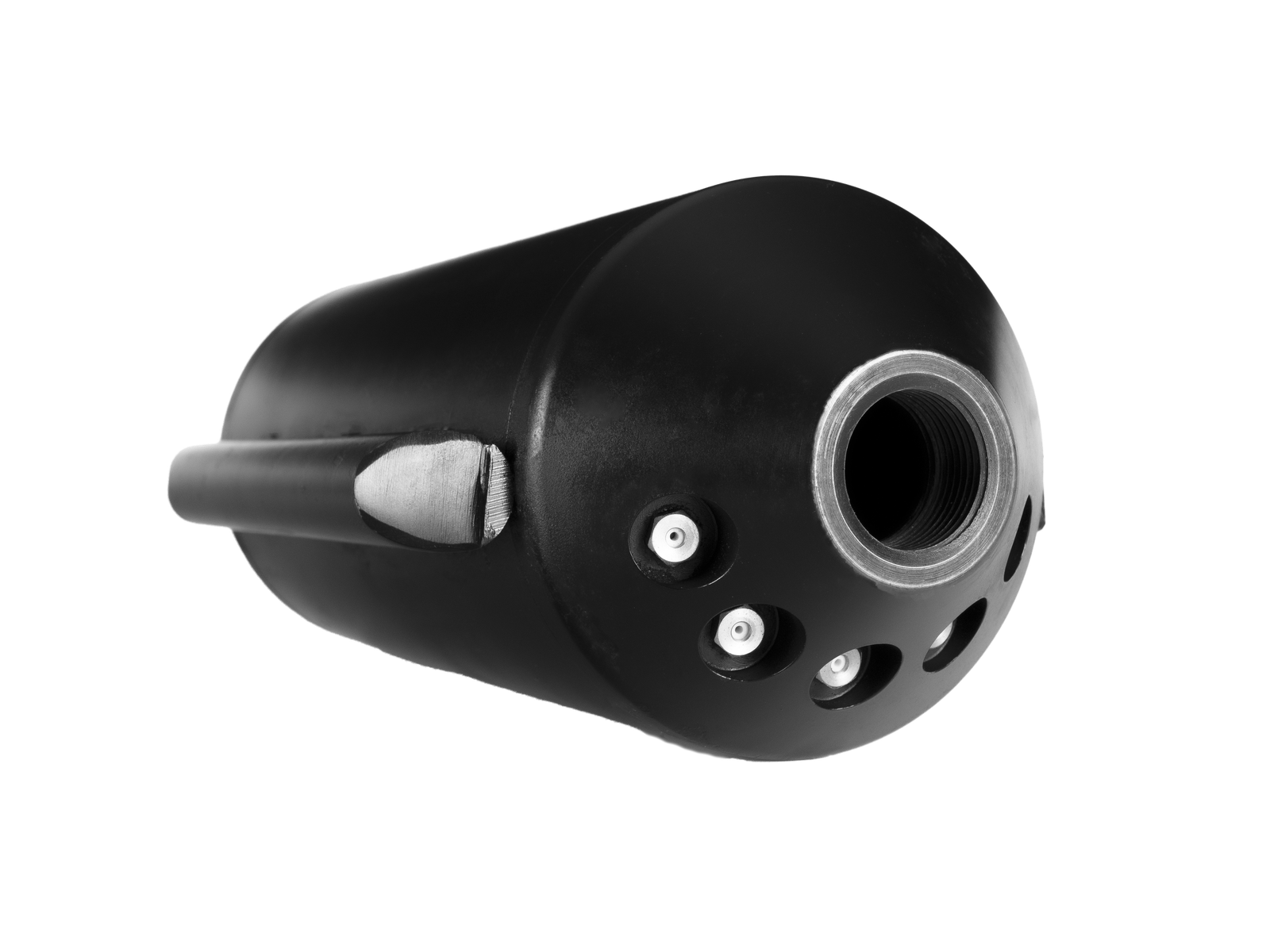

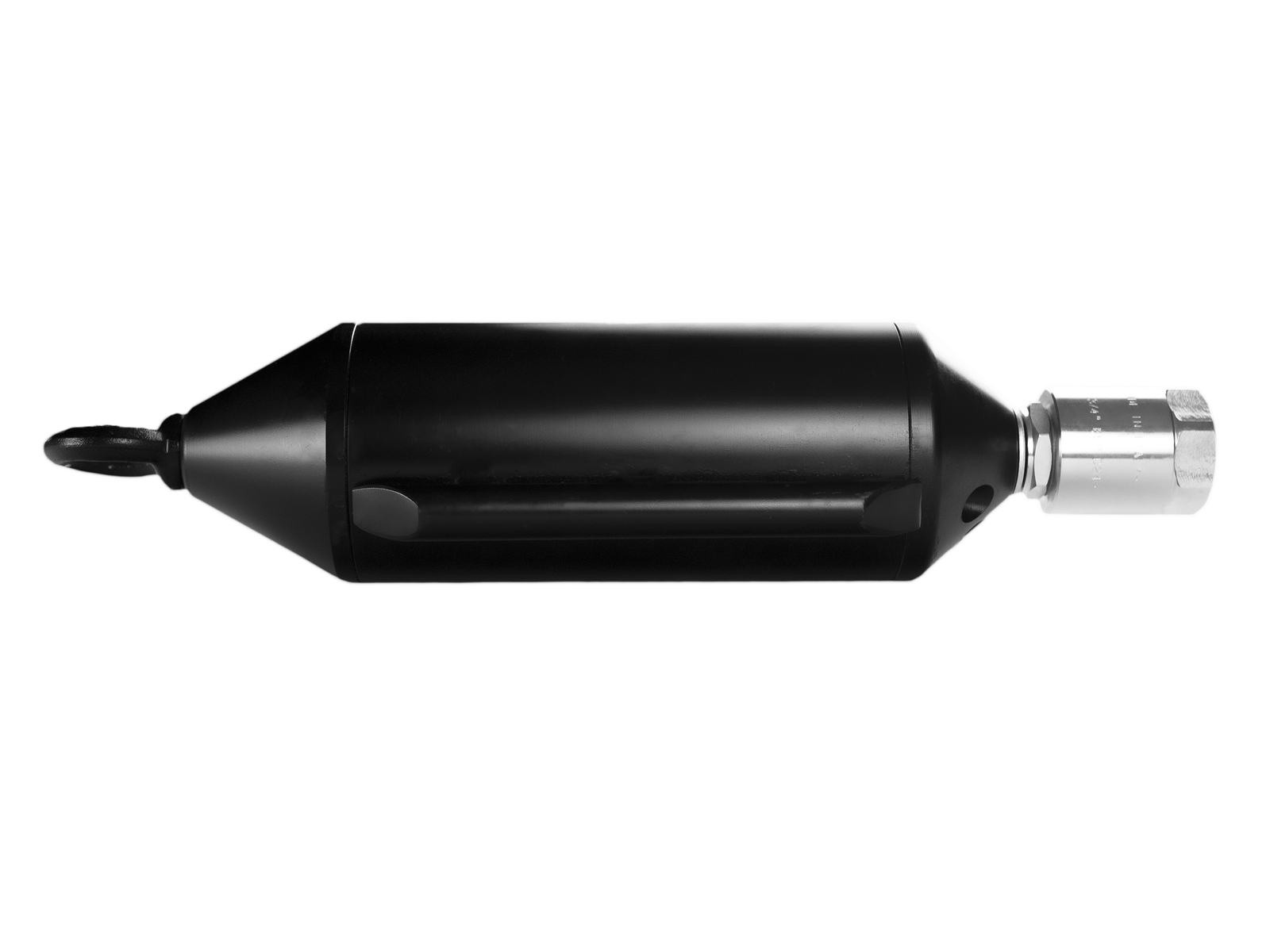

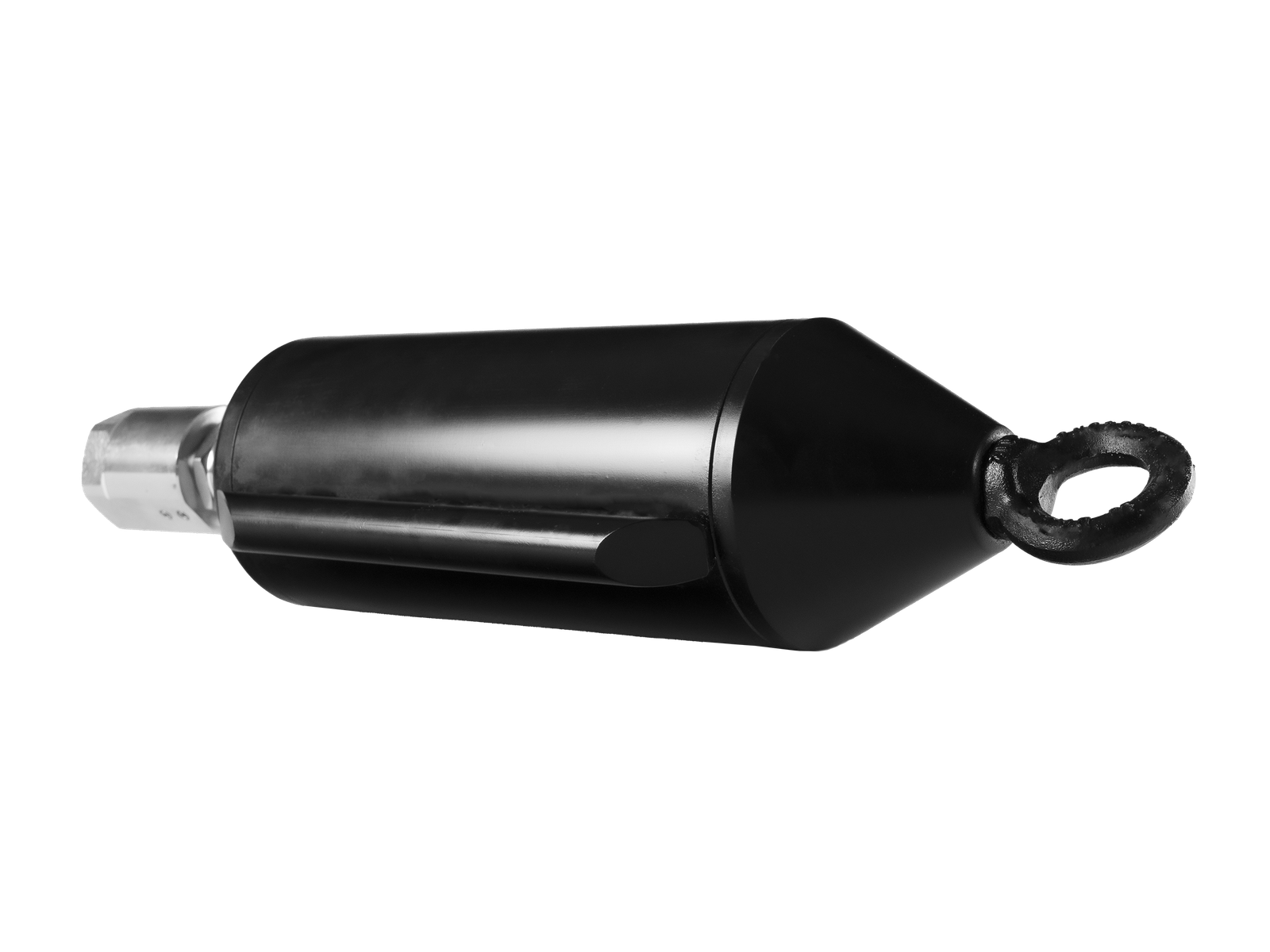

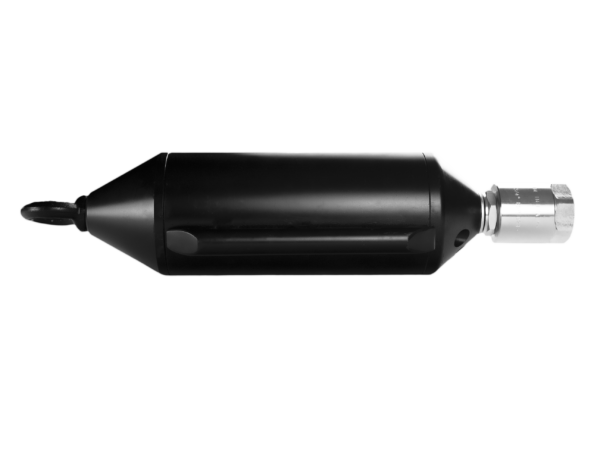

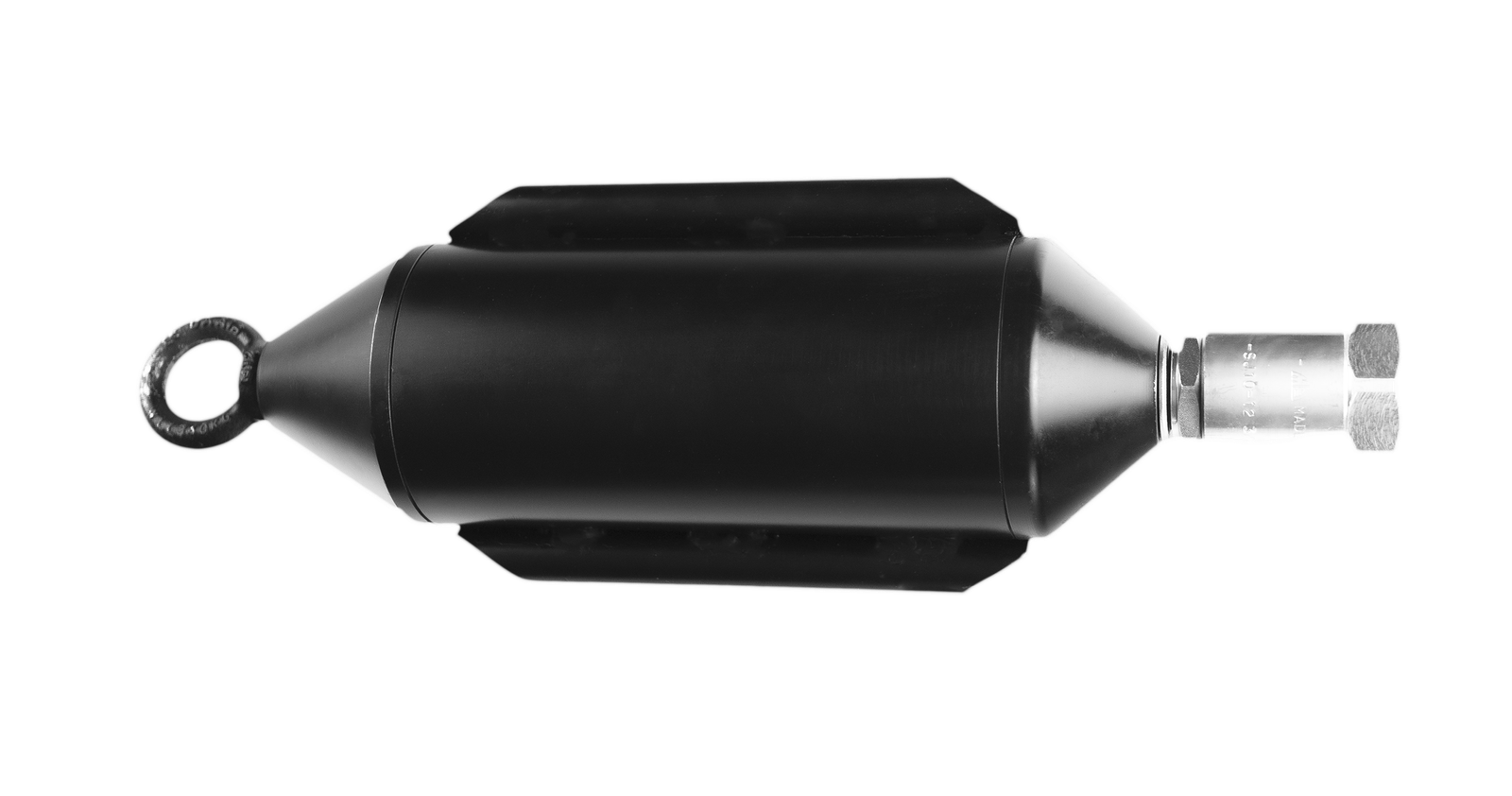

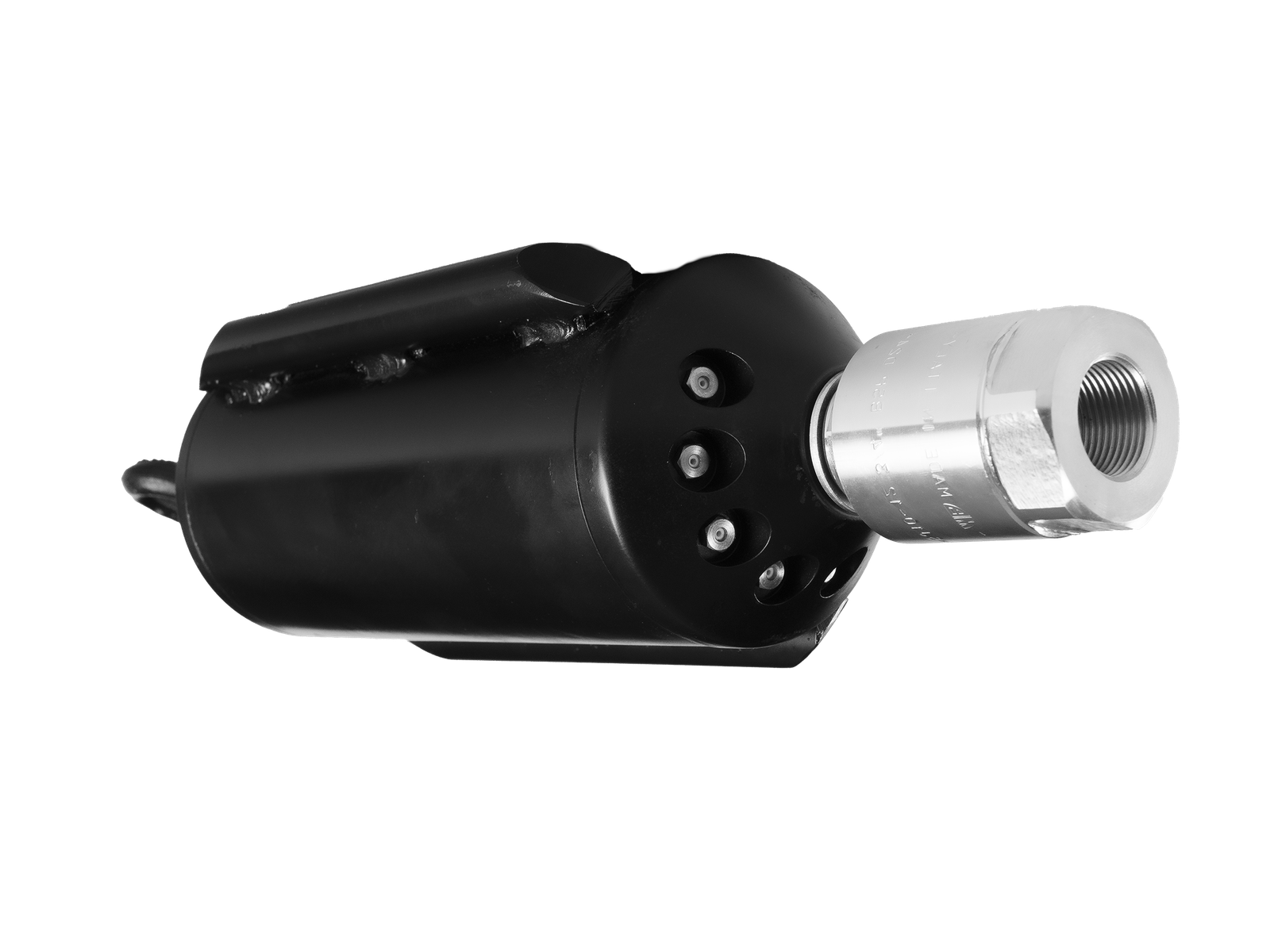

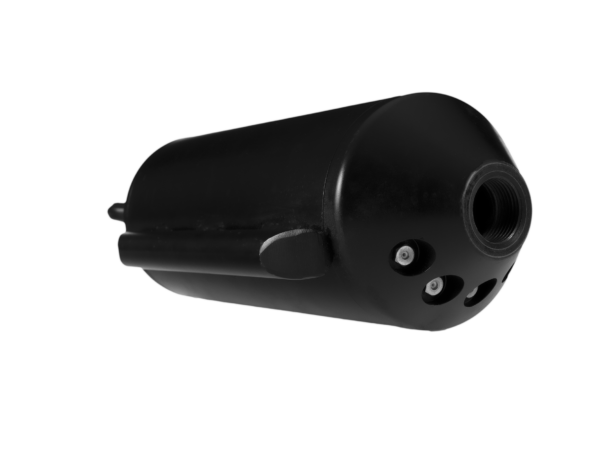

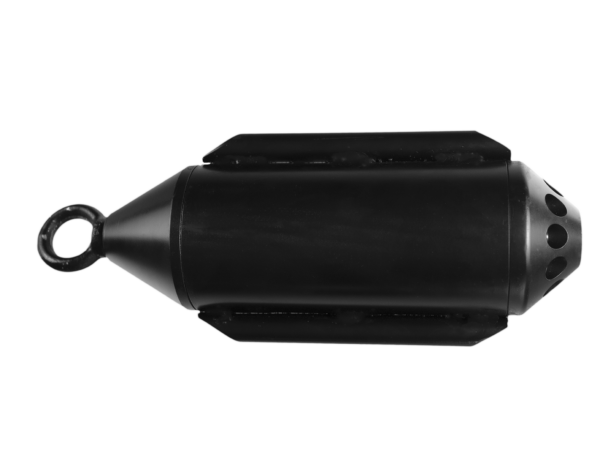

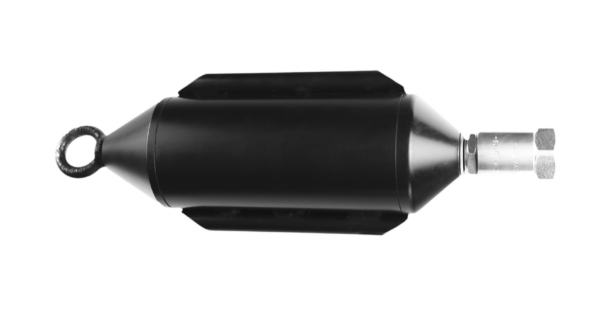

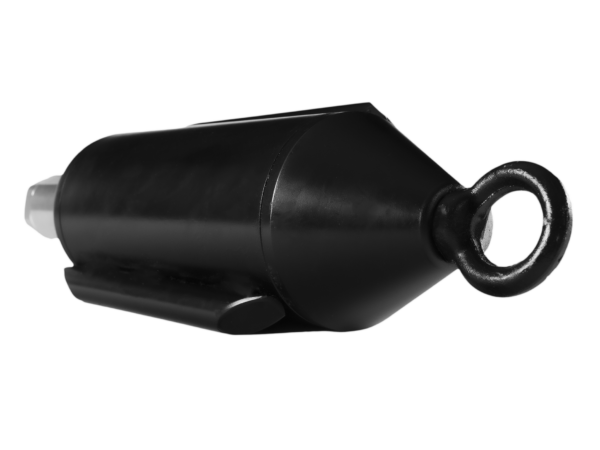

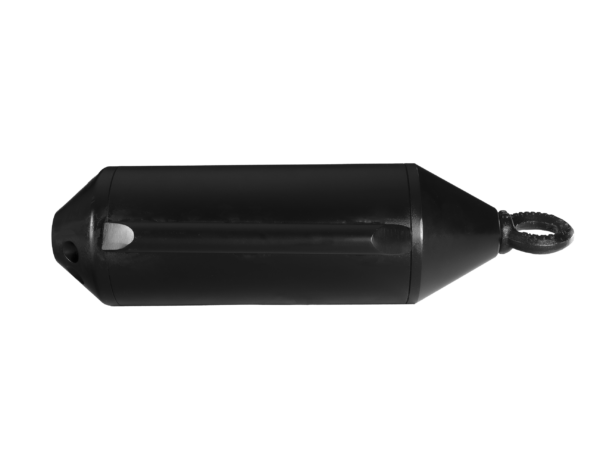

The Frankenstein is an optimized nozzle featuring an internal counterweight that prevents it from tilting sideways, ensuring the jets always hit the bottom of the pipe. It is threaded with a rear swivel joint to prevent the hose from twisting. Designed to deliver water jets in a laminar flow without turbulence, it produces highly impactful streams.
Applications: Removing sand and stones from the bottom of sewer pipelines.
PURCHASE INFORMATION
Description
Frankenstein – Bottom Cleaning Nozzle
The Frankenstein is an optimized jetting nozzle featuring an internal counterweight that prevents it from tilting sideways, ensuring the jets always hit the bottom of the pipe. It is threaded with a rear swivel joint to prevent the hose from twisting. Designed to deliver water jets in a laminar flow without turbulence, it produces highly impactful streams.
Applications
Removing sand and stones from the bottom of sewer pipelines.
Additional information
| Thread | 1" – 3/4" |
|---|---|
| Pipe diameter | 11.81'' – 23.62'' |

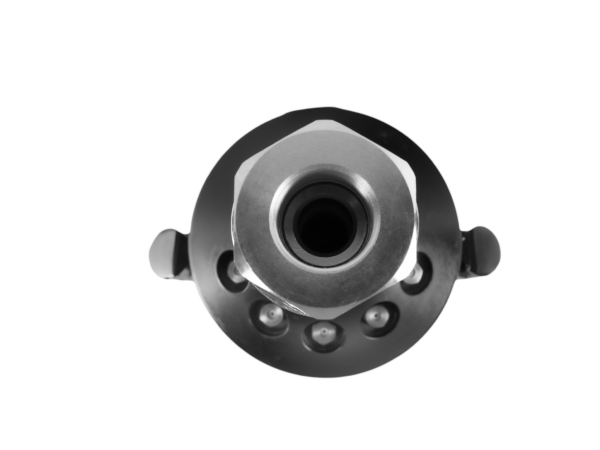

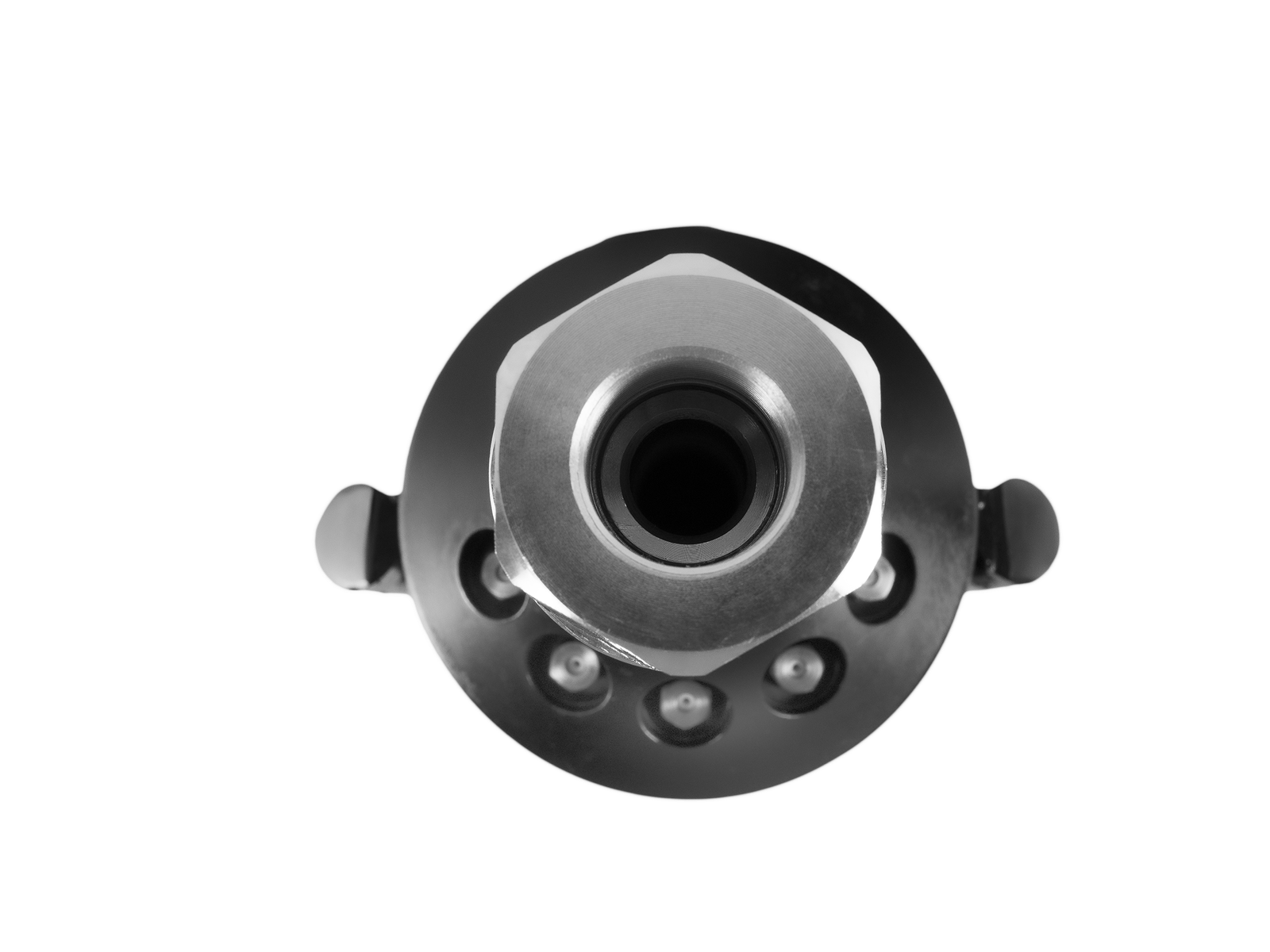

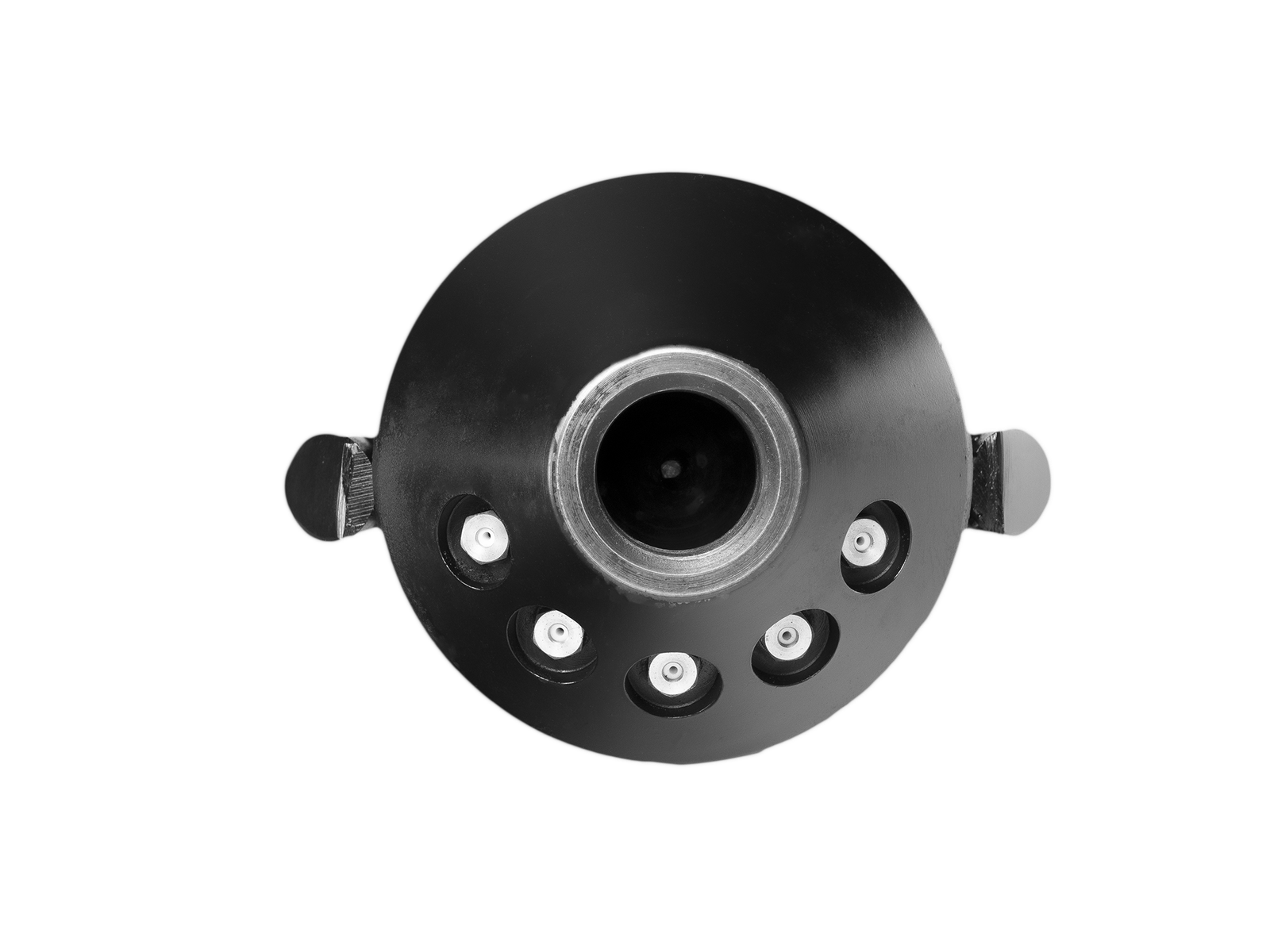

| Rear jet | 5 jets at 15º |
| Water Flow Rate (GPM) | 52.83 to 79.25 |
| Dimensions (inches) | 3.94" x 6.69" |
| Weight (lbs) | 22.05 |
